Enhanced Speed Bag System
The Enhanced Speed Bag system was designed to standardize the resupply procedure. The system consists of a hands free linear brake, rope and padded bag. When the bag is deployed the brake applies friction to the rope orienting the bag with the padded base down.
Enhanced Speed Bag System
NSN: 1670-01-628-5813
PART# 11-1-9060-1
Enhanced Speed Bag Refurbish
NSN: 1670-01-628-6841
PART# 11-1-9093-1
Enhanced Speed Bag System
The Enhanced Speed Bag system was designed to standardize the resupply procedure. The system consists of a hands free linear brake, rope and a padded cargo bag that can hold up to 200 pounds and be dropped from 100 feet.

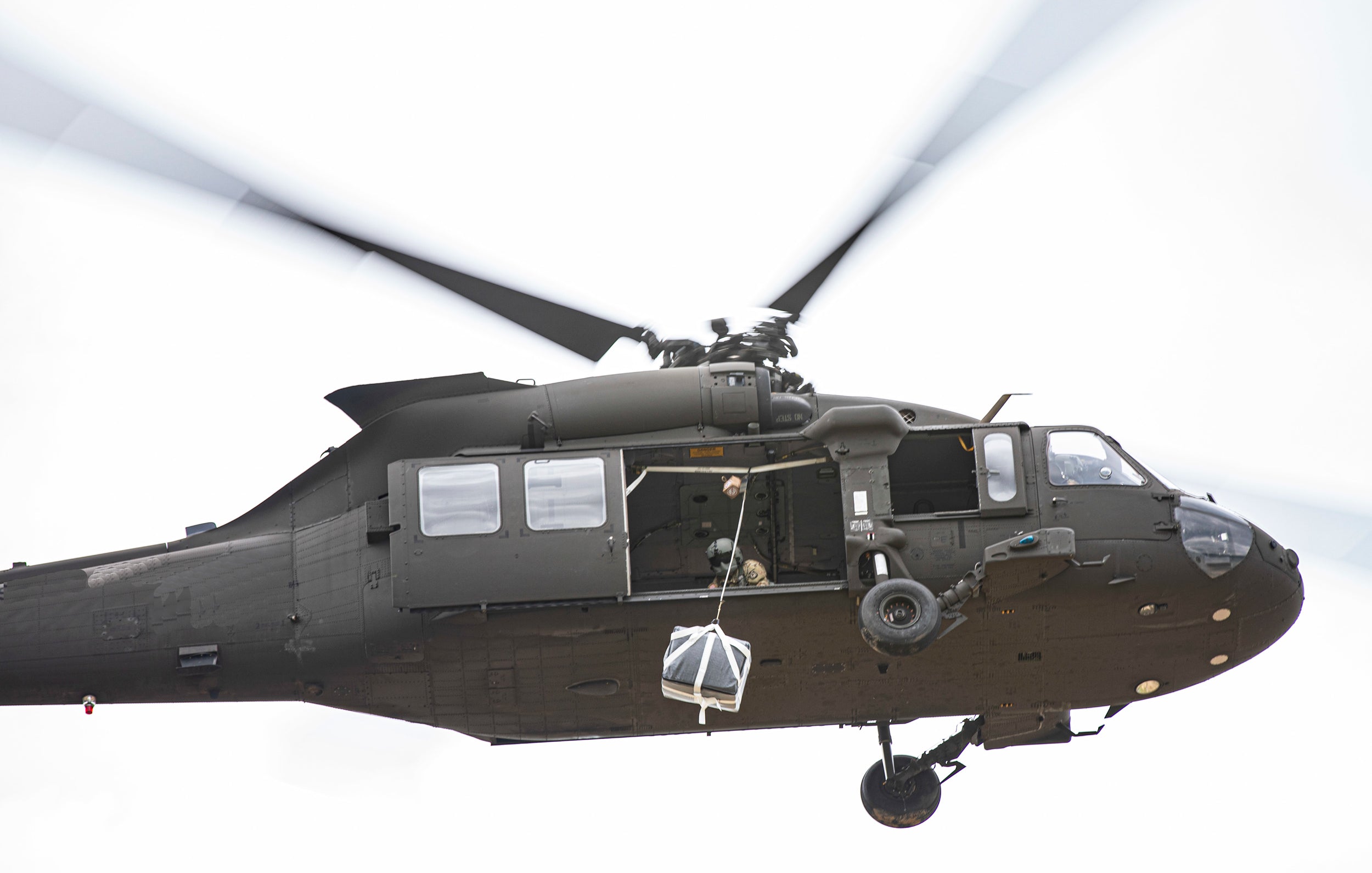

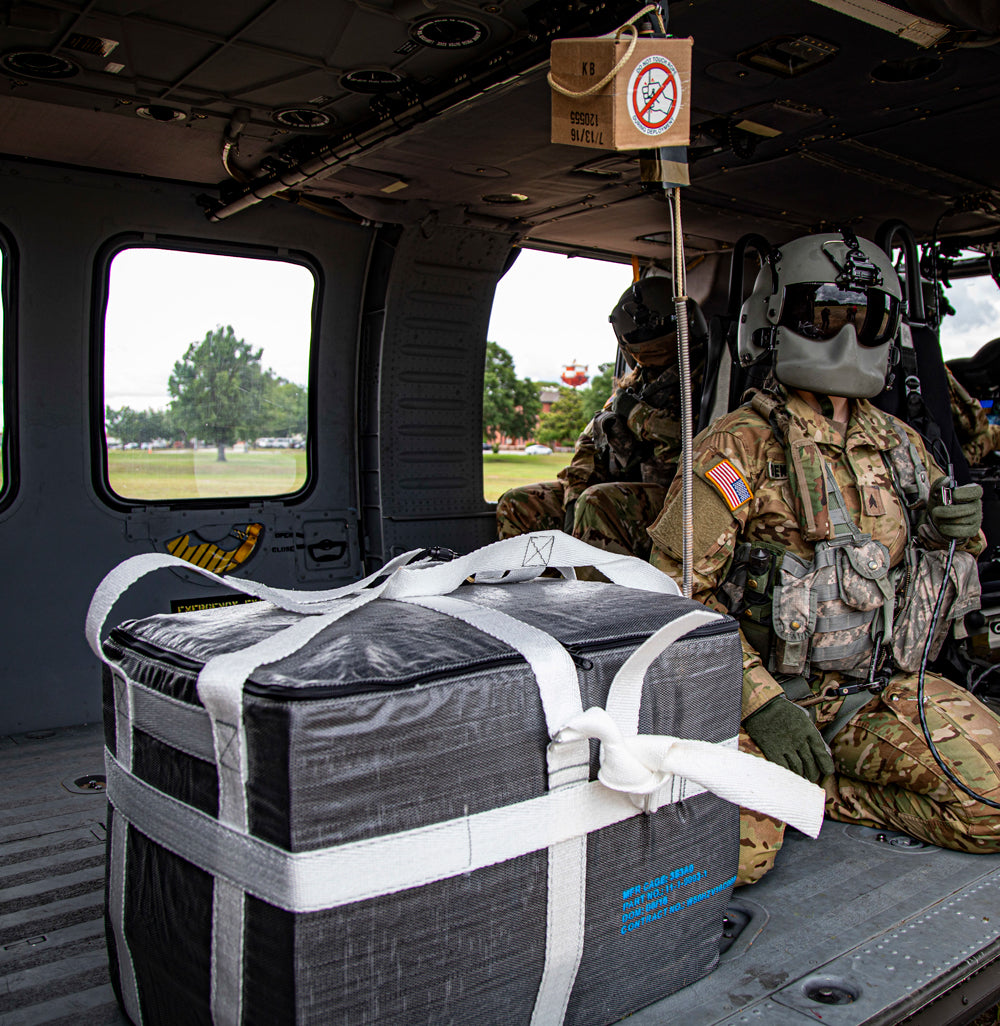

Six systems can be rigged in a Black Hawk simultaneously. Each bag can hold a maximum of 200 pounds of supplies. All six bags can be deployed from the aircraft into the resupply area at the same time, which allows for up to 1,200 pounds of supplies per aircraft to be dropped. Each bag must weigh at least 125 pounds. The bags are gauged using the multisetting gauge before they are loaded onto the aircraft. Because of the length of the rope in each system, the aircraft must maintain an altitude between 100 and 110 feet during the deployment of the bag.
Product Information
- Each Enhanced Speed Bag can hold up to 200 pounds of supplies
- Six Enhanced Speed Bags can be dropped from helicopters at one time.
- Resupply is Fast and Effective
- Enhanced Speed Bag System, NSN: 1670-01-628-5813, Part# 11-1-9060-1
- Enhanced Speed Bag Refurbish - NSN: 1670-01-628-6841, Part# 11-1-9093-1
- Anchoring Device NSN: 1670-00-999-3544, Part# 11-1-886
